Send InquiryLemo To Subvis Ut Cables
Lemo To Subvis Ut Cables Specification
- Weight
- Depends on length/ configuration
- Tensile Strength
- High (as per standard test)
- Locking Type
- Push-Pull Locking
- Core Number
- Multiple
- Rated Temperature
- -40C to 80C
- Install Type
- Plug-and-Play
- Operating Temperature
- -40C to 80C
- Insulation
- PVC Insulation
- Armored Material
- Stainless Steel Braid (Optional)
- Dielectiric Strength
- 2000V/min
- Cable Type
- LEMO to Subvis UT Hybrid Cable
- Usage & Applications
- Video transfer, Power transmission, Subsea equipment connectivity, Harsh environments
- Core Material
- Copper
- Impedance
- 75 Ohm (standard)
- Conductor Type
- Stranded
- Features
- Rugged design, Waterproof connectors, Reliable data/ power transfer, High flexibility, Easy plug-in interface
- Conductor Shape
- Round
- Diameter
- 4.5mm to 7.8mm (depending on configuration)
- Number of Conductor
- 4 to 12 cores (customizable)
- Product Type
- Connectorized Cable Assembly
- Length
- Customizable from 0.5 meter to 10 meters
- Voltage
- Up to 300V
- Insulation Material
- PVC
- Application
- Industrial video systems, Underwater cameras, Subsea robotics, Medical imaging
- Conductor Material
- High-purity Copper
- Jacket Material
- PUR (Polyurethane)
- Storage Temperature
- -55C to 105C
- Connector Color
- Silver/Black
- Shield Material
- Tinned Copper Braiding
- Jacket Color
- Black
- Dimension (L*W*H)
- Custom as per cable length and connector
- Color
- Black/Silver
- Material
- Copper/PVC/PUR
- Size
- Standard or Custom Sizes
- Flame Retardant
- Yes
- Maximum Current
- Up to 5A per core
- Ingress Protection
- IP68 (Mated)
- Mechanical Durability
- 5000+ mating cycles
- RoHS Compliance
- Yes
- Flex Life
- Over 2 million cycles (tested)
- Contact Plating
- Gold plated contacts
- Oil & Chemical Resistance
- Yes
- Connector Gender
- Male to Female available
About Lemo To Subvis Ut Cables
A Lemo to Subvis cable is a specialized interconnect cable used to connect devices with Lemo connectors to those with Subvis connectors. It is commonly utilized in medical, industrial, and scientific equipment for reliable, high-quality signal transmission. The cable ensures secure and precise connections, accommodating specific application requirements.
Engineered for Extreme Environments
Designed to withstand harsh industrial and subsea conditions, these cables feature a rugged build with IP68 rating (when mated), providing protection against water, dust, chemicals, and oils. The flame-retardant, high-flex design endures over 2 million flex cycles and 5000+ mating cycles, ensuring long-term reliability for continuous operation in challenging settings.
Customizable for Your Specific Needs
Offered in lengths from 0.5 to 10 meters with customizable core counts (412), these hybrid cables can be tailored to fit a variety of installation requirements. Customizable sizing, armored options, and numerous connector configurations allow flexibility for integration into systems used in stages, robotics, video infrastructure, or medical equipment.
Reliable Data and Power Transfer
With gold-plated contacts and stranded high-purity copper conductors, these cables ensure minimal signal loss and dependable power deliveryup to 5A per core and 300V. The tinned copper shielding maintains signal integrity even in environments with heavy electrical noise, ideal for video and data transmission in critical applications.
FAQs of Lemo To Subvis Ut Cables:
Q: How do I install Lemo to Subvis UT Hybrid Cables for underwater or robotic applications?
A: Installation is simple thanks to the plug-and-play, push-pull locking interface. Ensure connectors are clean and dry before mating for optimal IP68 protection. Cables can be routed and bent as needed without risk, thanks to their high flex and durable PUR/PVC construction.Q: What makes these cables suitable for harsh or industrial environments?
A: These cables offer flame-retardant, oil- and chemical-resistant jackets, IP68 ingress protection when mated, and mechanical durability rated for 5000+ mating cycles and over 2 million flex cycles. Their design withstands extreme temperatures, repeated use, and rugged handling, making them ideal for demanding environments.Q: When should I use armored versions of this cable?
A: Armored cables, reinforced with a stainless steel braid, are recommended in applications where additional mechanical protection is neededsuch as subsea installations, robotics, or locations where abrasion and impact risk is high.Q: Where are these cables most commonly used?
A: They are widely used in subsea robotics, underwater video or surveillance systems, industrial video transfer, medical imaging equipment, and any application requiring reliable data or power transmission under harsh or wet conditions.Q: What benefits do gold-plated contacts provide in these cables?
A: Gold-plated contacts resist corrosion and enhance electrical conductivity, minimizing signal loss and ensuring long-term performanceeven in moist or corrosive environments.Q: How can I customize the cable length and core number for my application?
A: You can specify the desired length (from 0.5 to 10 meters) and the number of conductors (between 4 and 12) at the time of order. This ensures a perfect fit for your installation and operational requirements, whether for compact devices or extended cable runs.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Lemo Connector Category
Lemo Cable Connectors
Price 3500.0 INR / Piece
Minimum Order Quantity : 100 Pieces
Application : Other, Medical equipment, test & measurement, audio/video, industrial automation, military, instrumentation
Size : Available from 0.5 to 3B series (various sizes)
Features : Pushpull selflatching system, robust design, quick connect/disconnect, vibrationresistant, highdensity contacts, reliable signal transmission
Material : Brass, stainless steel or aluminum shells
LEMO 6PIN (FGG-2B-306-EGG-2B-306)
Price 3450.0 INR / Piece
Minimum Order Quantity : 100 Pieces
Application : Other, Medical devices, test and measurement, audio/video broadcasting, industrial control
Size : 2B series (outer shell diameter approx. 16 mm)
Features : Pushpull selflatching system, easy and secure connection, high precision
Material : Brass (chromeplated) housing
Lemo To Uhf Male Rg58 Cable
Price 1500.0 INR / Piece
Minimum Order Quantity : 100 Pieces
Application : Other, RF transmission, radio equipment, laboratory testing
Size : RG58 Standard
Features : Low loss, high flexibility, precision connectors
Material : Copper, PVC, PE

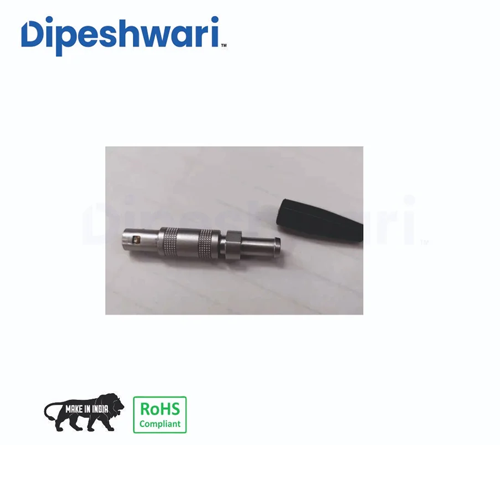

Lemo Miniature Coaxial Connector
