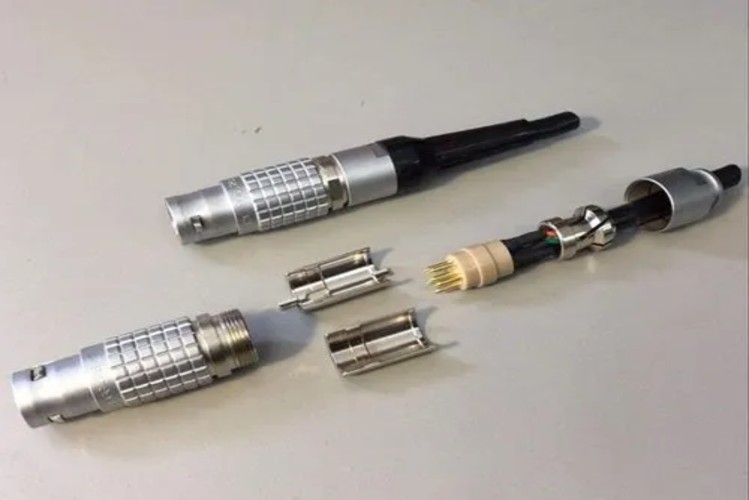

LEMO 6PIN (FGG-2B-306-EGG-2B-306)

LEMO 6PIN (FGG-2B-306-EGG-2B-306) Specification

Tensile Strength
>70 N (when mated)

Core Material
Copper

Impedance
50 Ohm Nominal

Weight
Approx. 50g (with cable, may vary by configuration)

Diameter
Approx. 16 mm

Dielectiric Strength
2 KV AC (60s)

Rated Temperature
-55C to +250C

Core Number
6

Insulation
High performance synthetic polymer

Cable Type
Circular multi-core shielded cable

Locking Type
Push-Pull self-latching

Number of Conductor
6

Conductor Shape
Round

Features
Push-pull self-latching system, easy and secure connection, high precision

Armored Material
Optional stainless steel armored tube (for harsh environments)

Install Type
Panel mount / cable mount

Conductor Type
Stranded or solid (based on cable specification)

Usage & Applications
Medical equipment, robotic systems, industrial automation, broadcast studio

Operating Temperature
-55C to +250C

Product Type
LEMO Circular Push-Pull Connector

Length
Varies (customizable depending on application)

Voltage
Rated up to 150V

Insulation Material
High quality polymer (PTFE/PVC options available)

Application
Medical devices, test and measurement, audio/video broadcasting, industrial control

Conductor Material
Copper

Jacket Material
PVC / PUR (as per cable type)

Storage Temperature
-55C to +260C

Connector Color
Silver (standard plating finish)

Shield Material
Copper (braided)

Jacket Color
Black / Gray

Dimension (L*W*H)
Length depends on cable, diameter approx. 16 mm

Color
Silver/Gray

Material
Brass (chrome-plated) housing

Size
2B series (outer shell diameter approx. 16 mm)

Max Wire Size
up to 0.5 mm (20 AWG)

Gender
Male (FGG) to Female (EGG)

Contact Material
Brass, gold-plated

Frequency Range
DC to 1 GHz

Connection Type
FGG-2B-306 plug to EGG-2B-306 socket

Environmental Protection
IP50/IP68 (depending on configuration)

Contact Resistance
5 m

Backshell Option
Available with bend relief

Mating Cycles
5000 cycles

About LEMO 6PIN (FGG-2B-306-EGG-2B-306)

Presenting the matchless LEMO 6PIN (FGG-2B-306-EGG-2B-306) connector, crafted with eminent precision and robust brass gold-plated contacts. Delivering a competitive pricing advantage and reduced price for dealers and distributors, this connector ensures reliable performance in demanding environments such as medical devices and industrial automation. Its gorgeous silver-plated finish and push-pull self-latching system guarantee easy and secure connections up to 150V. Try now for exceptional endurance with 5000 mating cycles, IP50/IP68 environmental protection, and customizable lengthsperfect for broadcast, test systems, and robotics.

Exceptional Features & Versatile Applications

The LEMO 6PIN connector boasts high precision, low contact resistance (5 m), and a rugged push-pull self-latching design. Available with bend relief backshell, it fits diverse installation needs in medical diagnostics, audio/video broadcasting, and industrial control. Its environmental resilience (IP50/IP68 ratings) and premium insulation materials (PTFE/PVC) make it perfect for challenging applications where reliability is paramount.

Efficient Delivery & Global Export Logistics

Our streamlined logistics ensure prompt delivery of the LEMO 6PIN connector, with careful packaging for secure transit. Freight options via major FOB ports are tailored to your location. We export primarily to markets across Asia, Europe, and North America, with experienced handling for dealers, wholesalers, and manufacturers. Fast shipping and dedicated support offer peace of mind for global buyers.

FAQs of LEMO 6PIN (FGG-2B-306-EGG-2B-306):

Q: How does the push-pull self-latching system improve usage in medical and industrial environments?

A: The push-pull self-latching system ensures quick, secure, and reliable mating and unmating, minimizing the risk of accidental disconnection. This feature is especially beneficial for critical applications in medical and industrial settings where safety and precision are essential.

Q: What is the maximum wire size and frequency range supported by the LEMO 6PIN connector?

A: This connector accommodates wire sizes up to 0.5 mm (20 AWG) and operates efficiently across a frequency range from DC to 1 GHz, making it ideal for high-speed data and power transmission.

Q: Where can the LEMO 6PIN (FGG-2B-306-EGG-2B-306) connector be installed?

A: Its versatile design allows for installation in panel mount or cable mount configurations, making it suitable for use in medical equipment, broadcasting studios, robotics, and industrial automation systems.

Q: What logistical services are provided for delivery and export?

A: We offer dedicated freight and packaging services to ensure safe transit. Delivery is managed efficiently, and orders can be shipped from major FOB ports to various international markets, supporting dealers and distributors worldwide.

Q: What are the special material and environmental protection features of this connector?

A: The connector is made from chrome-plated brass with a high-performance synthetic polymer insulation, offering environmental protection up to IP68 depending on the configuration. This ensures durability even in harsh operating conditions.
