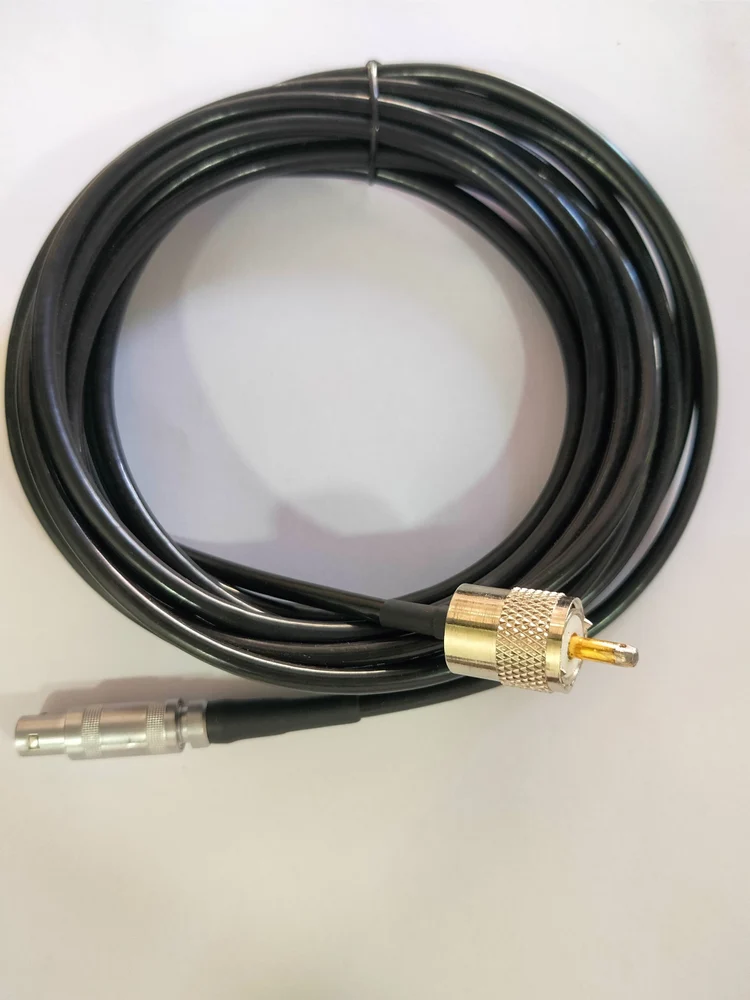

Lemo To Uhf Male Rg58 Cable

Lemo To Uhf Male Rg58 Cable
Lemo To Uhf Male Rg58 Cable

Lemo To Uhf Male Rg58 Cable Specification

  • Rated Temperature
  • -20C to +80C
  • Conductor Type
  • Stranded
  • Impedance
  • 50 Ohm
  • Weight
  • Approx. 50g per meter
  • Conductor Shape
  • Round
  • Cable Type
  • RG58 coaxial
  • Tensile Strength
  • >300 N
  • Core Number
  • Single core
  • Operating Temperature
  • -20C to +80C
  • Diameter
  • 5mm (nominal)
  • Insulation
  • Polyethylene (PE)
  • Usage & Applications
  • RF communication, antennas, test and measurement
  • Features
  • Low loss, high flexibility, precision connectors
  • Locking Type
  • Screw thread (UHF), push-pull (LEMO)
  • Dielectiric Strength
  • 1000V RMS
  • Number of Conductor
  • 1
  • Armored Material
  • No armoring
  • Core Material
  • Copper
  • Install Type
  • Plug & Play
  • Product Type
  • Coaxial RF cable assembly
  • Length
  • 1 meter (customizable)
  • Voltage
  • 300V
  • Insulation Material
  • PE (Polyethylene)
  • Application
  • RF transmission, radio equipment, laboratory testing
  • Conductor Material
  • Copper
  • Jacket Material
  • PVC
  • Storage Temperature
  • -40C to +85C
  • Connector Color
  • Silver/Metallic
  • Shield Material
  • Tinned copper braid
  • Jacket Color
  • Black
  • Dimension (L*W*H)
  • 1000mm x 5mm x 5mm (approx.)
  • Color
  • Black
  • Material
  • Copper, PVC, PE
  • Size
  • RG58 Standard



About Lemo To Uhf Male Rg58 Cable

A cable that connects a LEMO 01 (Lemo 1 compatible) connector to a UHF male (PL259) connector using RG58 coaxial cable is a specialized item, typically used in applications like non-destructive testing (NDT), physics, aerospace, and ultrasonic measurements.



Superior Connectivity and Durability

This RG58 coaxial cable is engineered for optimal RF performance and long-lasting use. The precision LEMO push-pull connector and UHF male end ensure a secure, stable connection for sensitive applications, including testing and antenna systems. Its nickel-plated contacts and tinned copper braid shielding provide excellent signal integrity and protection.


Flexible, Flame-Retardant Design

The cable features a highly flexible construction, making installation straightforward even in tight spaces. The black PVC jacket is flame-retardant, enhancing workplace safety, while the tough PE insulation maintains low capacitance and high dielectric strength. The cable caters to various industrial, commercial, and laboratory environments.

FAQs of Lemo To Uhf Male Rg58 Cable:


Q: How does the push-pull LEMO connector enhance connection security?

A: The push-pull self-latching mechanism of the LEMO connector provides a secure, rapid connection and prevents accidental disconnection. This design ensures reliable performance, especially in environments where cables may experience movement or vibration.

Q: What are the typical applications for the Lemo to UHF Male RG58 cable?

A: This cable is commonly used for RF communication, connecting antennas, radio equipment, and in laboratory testing setups. Its flexibility and low loss make it ideal for test and measurement, broadcast, and other RF signal transmission applications.

Q: When should I use this cable over other RF cables?

A: Choose this Lemo to UHF Male RG58 cable when you require a combination of high flexibility, robust build, and precise connector mating. Its especially suitable for professional RF setups that need secure, quality signal transmission and ease of installation.

Q: Where can I install or deploy this cable?

A: The cable can be used in indoor or outdoor environments, provided it is protected from direct exposure to harsh conditions. Its rugged design supports use in labs, broadcasting stations, communications equipment, and quick field installations.

Q: What process is involved in connecting and disconnecting the cable?

A: For the LEMO end, simply push the connector in until it latches. To disconnect, pull back the outer shell to release the latch. The UHF male end uses a screw thread for secure mating, ensuring stability under strain or movement.

Q: What benefits does the RG58 specification bring to RF applications?

A: The RG58 cable provides low signal loss, reliable impedance matching (50 Ohm), and high capacitance performance. This leads to better RF efficiency, reduced interference, and more accurate transmission across DC to 1 GHz frequencies.

Q: Is this cable compliant with safety and environmental standards?

A: Yes, the cable is RoHS compliant, flame-retardant, and constructed from high-quality, environmentally-safe materials, ensuring both operational safety and adherence to global standards.
