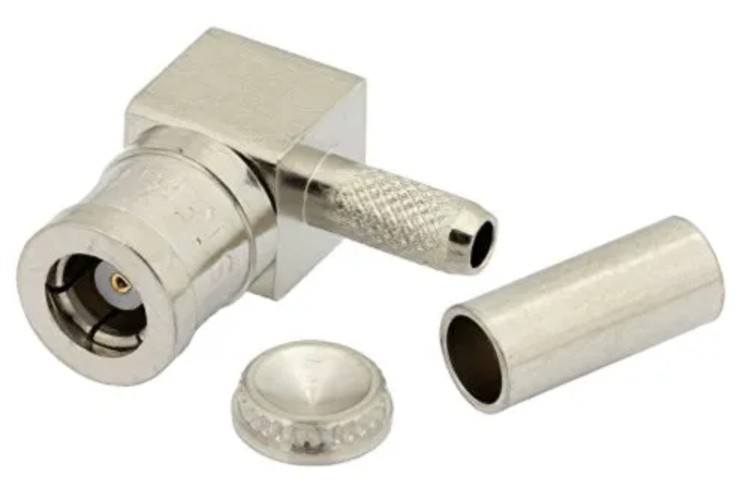

Send InquirySMB Plug R/ A Connector Crimp/Solder Type for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100
SMB Plug R/ A Connector Crimp/Solder Type for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100 Specification
- Mounting Type
- Cable mount, crimp/solder type
- Range
- Up to 4 GHz frequency application
- Frequency
- DC to 4 GHz
- Features
- Right angle design; Quick connect/disconnect; Low VSWR; High durability; Compatible with multiple cable types
- Size
- Fits RG174, RG316, RG188, LMR-100, PE-B100, PE-C100 cables
- Shelf Life
- Not applicable (non-perishable electronic component)
- Interface Type
- SMB (SubMiniature version B)
- Model
- SMB-R/A-Crimp/Solder
- Operating Temperature
- -55C to +155C
- Connectivity Type
- Coaxial
- Product Type
- SMB Plug Right Angle Connector
- Application
- RF and microwave communication systems, coaxial cable connection
- Dimension (L*W*H)
- Approx. 24mm x 10mm x 8mm
- Material
- Brass body with gold plating
- Weight
- Approx. 6g
- Capacity
- Supports frequencies up to 4 GHz
- Coverage Area
- Point-to-point RF cable assemblies
About SMB Plug R/ A Connector Crimp/Solder Type for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100
The SMB connector is a subminiature RF connector commonly used for applications requiring frequencies up to 4 GHz. "SMB" stands for "SubMiniature version B." SMB connectors feature a snap-on coupling mechanism, making them easy to connect and disconnect without requiring tools. Theyre commonly used in applications such as telecommunications, test equipment, and cable assemblies.
Versatile Compatibility
This SMB connector is engineered to accommodate several popular coaxial cable types, including RG174, RG316, RG188, LMR-100, PE-B100, and PE-C100. Its adaptable crimp/solder termination ensures reliable installation across diverse RF and microwave applications for efficient point-to-point connections.
Reliable Performance and Durability
Utilizing gold-plated brass components and PTFE dielectric, the connector offers impressive electrical characteristics such as high insulation resistance and low contact resistance. Designed for over 500 mating cycles, it is suitable for environments demanding repeated connections and robust durability.
Ease of Installation and Use
The right angle design and quick connect/disconnect capability streamline cable routing in tight spaces. Crimp or solder termination options provide flexibility for different assembly preferences, while cable mount design ensures secure, stable connections in various usage scenarios.
FAQs of SMB Plug R/ A Connector Crimp/Solder Type for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100:
Q: How do I install the SMB Plug Right Angle Connector for my coaxial cable?
A: To install, select a compatible cable such as RG174, RG316, RG188, LMR-100, PE-B100, or PE-C100. Prepare the cable ends, then attach the connector by either crimping or soldering, following standard procedures for RF connectors. Ensure proper seating of the center conductor and secure the body for optimal performance.Q: What frequency range does the SMB-R/A-Crimp/Solder connector support?
A: This connector is rated for applications from DC up to 4 GHz, making it suitable for a broad range of RF and microwave communication systems, including signal transmission and point-to-point assemblies.Q: When is it beneficial to use a right angle SMB plug rather than a straight connector?
A: A right angle connector is preferred when space constraints or specific cable routing requirements are present, enabling neat installation and reduced strain on cables inside compact assemblies or enclosures.Q: Where can this connector be used within RF and microwave systems?
A: It is suitable for point-to-point cable assemblies, RF test setups, communications equipment, and environments requiring quick connect/disconnect features. The connectors versatility makes it ideal for manufacturers, installers, distributors, and service providers involved in coaxial cable connections.Q: What are the main advantages of brass with gold plating and PTFE dielectric in this connector?
A: Gold-plated brass provides corrosion resistance and maintains excellent conductivity, while PTFE dielectric ensures stable electrical insulation and low loss, enhancing the connectors reliability for high-frequency applications.Q: How many mating cycles can the SMB plug endure?
A: The connector is rated for at least 500 mating cycles, ensuring long-term durability and sustained performance even in applications involving frequent connections and disconnections.Q: What is the process for choosing between crimp and solder termination?
A: Crimp termination is faster and preferred for large-scale installations, offering mechanical strength, while soldering provides superior electrical contact and is suitable for precise, low-volume applications. Choice depends on installation volume, preference, and specific assembly needs.Tell us about your requirement
