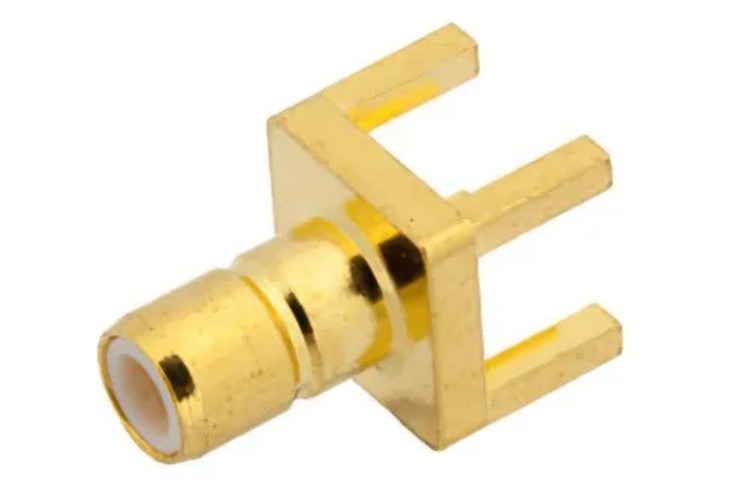

Send InquirySMB Jack Connector Solder Type Thru Hole PCB, .200 inch x .067 inch Hole Spacing
SMB Jack Connector Solder Type Thru Hole PCB, .200 inch x .067 inch Hole Spacing Specification
- Mounting Type
- Thru Hole PCB
- Interface Type
- SMB Female
- Model
- SMB Jack Solder Type
- Range
- Up to 4 GHz
- Size
- Standard SMB PCB Jack
- Operating Temperature
- -40C to +85C
- Features
- High frequency, Reliable connection, Compact design
- Frequency
- DC to 4 GHz
- Connectivity Type
- Thru Hole, Solder type
- Product Type
- SMB Jack Connector
- Application
- RF, Microwave, Communication Equipment, PCB Mounting
- Dimension (L*W*H)
- .200 inch x .067 inch (Hole Spacing)
- Material
- Brass Body, Gold Plated Contacts
- Weight
- Approx. 2g
- Coverage Area
- PCB Mount Component
About SMB Jack Connector Solder Type Thru Hole PCB, .200 inch x .067 inch Hole Spacing
The SMB connector is a subminiature RF connector commonly used for applications requiring frequencies up to 4 GHz. "SMB" stands for "SubMiniature version B." SMB connectors feature a snap-on coupling mechanism, making them easy to connect and disconnect without requiring tools. Theyre commonly used in applications such as telecommunications, test equipment, and cable assemblies.
Robust Design for High-Frequency Applications
Engineered for demanding RF and microwave environments, this SMB jack connector ensures stable connectivity with its 50 Ohm impedance and low contact resistance. The gold plating and brass construction enhance durability, while the high-quality PTFE insulator ensures reliable electrical insulation during extended operation.
Convenient and Reliable PCB Mounting
With a thru-hole, solder-type mounting style, this SMB jack connector is easy to integrate into standard PCBs. Its precise hole spacing (.200 inch x .067 inch) and snap-on coupling provide secure attachment and consistent signal stability, making it an excellent choice for communication and signal equipment.
FAQs of SMB Jack Connector Solder Type Thru Hole PCB, .200 inch x .067 inch Hole Spacing:
Q: How do I install the SMB Jack Connector on a PCB?
A: To install, align the connectors pins with the PCB holes (.200 inch x .067 inch spacing), insert the connector, and solder the pins to the PCB pads. Ensure proper heating for a solid electrical connection and mechanical stability.Q: What equipment typically uses this SMB jack solder type connector?
A: This connector is commonly used in RF, microwave, and communication equipment, offering reliable performance up to 4 GHz. Its durable construction makes it suitable for both commercial and industrial PCB assemblies.Q: When should I choose a solder type thru-hole SMB jack over other mounting types?
A: Choose this solder type thru-hole connector when you need a robust mechanical connection, high mating cycle life, and secure signal integrity in applications where PCB space and stable frequency operation are critical.Q: What are the advantages of the snap-on coupling retention mechanism?
A: Snap-on coupling offers quick, tool-free mating and un-mating, facilitating efficient assembly and maintenance while maintaining strong mechanical retention and consistent electrical contact.Q: Where can this connector be sourced in India?
A: This SMB Jack Connector is available through various channels in India, including dealers, distributors, exporters, fabricators, importers, manufacturers, producers, retailers, service providers, suppliers, traders, and wholesalers.Q: What is the process for ensuring proper electrical performance after installation?
A: After soldering, visually inspect all joints, measure insulation resistance (>1000 M), and confirm VSWR (1.3:1 up to 4 GHz) compliance with test equipment to ensure reliable electrical performance.Q: What benefits does the gold plating on contacts and body offer?
A: Gold plating enhances conductivity, resists corrosion, and supports longevity by minimizing oxidation, especially important in high-frequency and high-reliability RF environments.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in SMB Connector Category
SMB Plug R/ A Connector Crimp/Solder Type for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100
Price 299.0 INR / Piece
Minimum Order Quantity : 100 Pieces
2.4mm Female to 2.4mm Female flange adaptor
Price 4500.0 INR / Piece
Minimum Order Quantity : 100 Pieces
SMB Plug Connector Crimp/Solder Type for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch
Price 300.0 INR / Piece
Minimum Order Quantity : 100 Pieces

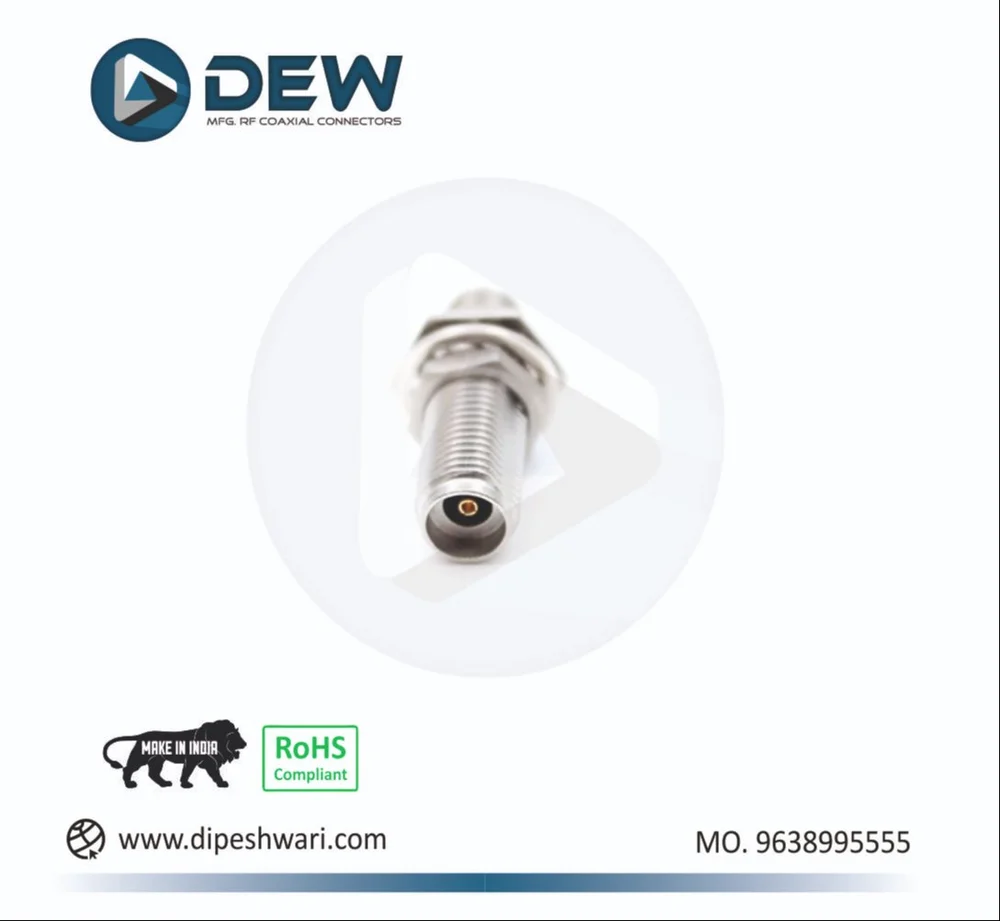

2.92mm Female to 2.92mm female Bulkhead Adapters
