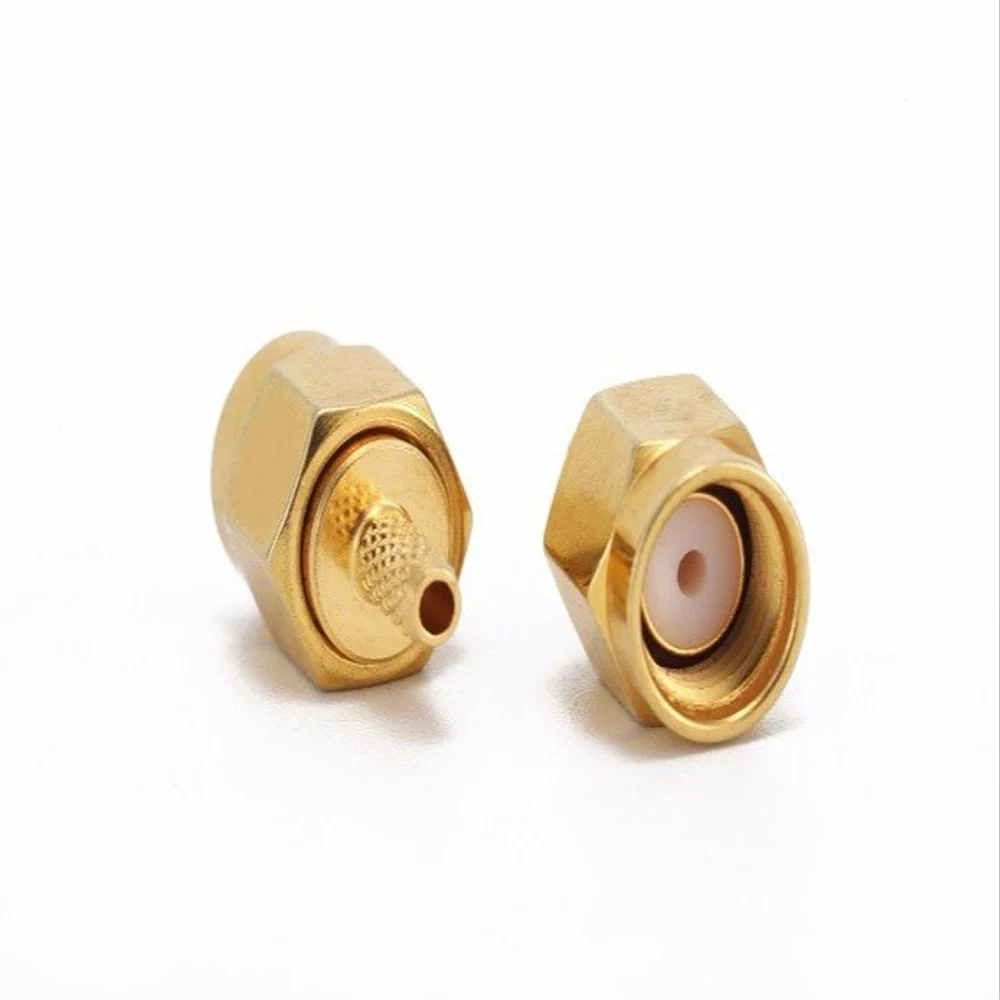

Sma Male Crimp For Rg174,Rg316

Sma Male Crimp For Rg174,Rg316 Specification

Core Material
Copper

Cable Type
RG174, RG316 Coaxial Cable

Diameter
Approx. 7mm

Insulation
PTFE

Conductor Shape
Round

Weight
Approx. 4g

Number of Conductor
Single

Conductor Type
Stranded

Usage & Applications
RF Equipment, Laboratory, Antenna Cabling, Instrumentation

Core Number
1

Install Type
Crimp

Tensile Strength
High as per cable spec

Operating Temperature
-65C to +165C

Features
Precision-machined body, Gold plated contacts, High frequency performance, Reliable crimp termination

Locking Type
Threaded Coupling

Rated Temperature
-55C to +155C

Dielectiric Strength
1000 V rms

Impedance
50 Ohm

Product Type
SMA Male Crimp Connector

Length
Custom/As required

Voltage
Up to 335 V rms

Insulation Material
PTFE

Application
RF, WLAN, Antenna, Test Instruments, RG174/RG316 Cable Connectivity

Conductor Material
Copper

Jacket Material
TPE/PVC (as per cable used)

Storage Temperature
-40C to +85C

Connector Color
Gold

Shield Material
Copper alloy

Jacket Color
Black

Dimension (L*W*H)
Approx. 20mm x 7mm x 7mm

Material
Brass/Machined Brass, Gold Plated

Color
Gold/Metallic

Size
Standard SMA Size

VSWR
<1.3 max

Connector Interface
SMA Standard

Insulator Resistance
5000 M

RoHS Status
Compliant

Contact Resistance
3 m

Contact Plating
Gold

Packaging Type
Polybag or Box

Surface Finishing
Gold Plated

Termination
Crimp

Gender
Male

Frequency Range
DC to 6 GHz

Mounting Type
Cable mount

About Sma Male Crimp For Rg174,Rg316

Dipeshwari Engineering Works SMA Connector Technical Specifications:

Frequency Range: Up to 18 GHz, ensuring versatile RF and microwave compatibility.
Impedance: Standard 50 ohms for consistent and reliable signal integrity.
Connector Type: Precision-engineered SMA (SubMiniature version A), available in male and female configurations.
Material: High-quality brass or stainless steel for durability and optimal conductivity.
Termination: Solder or crimp options, providing flexibility for various assembly needs.
VSWR (Voltage Standing Wave Ratio): Maintains a low VSWR for efficient signal transmission.
Durability: Robust design by Dipeshwari Engineering Works for long-lasting and reliable performance.
Temperature Range: Wide operational range, ensuring adaptability to different environments.
Applications: Ideal for RF and microwave systems, telecommunications, antennas, and test equipment.
Standards Compliance: Meets industry standards, including MIL-PRF-39012 and MIL-STD-348, ensuring quality and performance.

Choose Dipeshwari Engineering Works for SMA Connectors that deliver precision, reliability, and optimal performance in high-frequency applications.

Yes! I am intereste

High-Performance and Versatile Connectivity

Engineered for demanding RF and WLAN applications, the SMA Male Crimp Connector guarantees high-frequency performance up to 6 GHz. Its custom-fit design for RG174 and RG316 cables, combined with gold-plated contacts, results in minimal signal loss and enhanced reliability.

Durable and User-Friendly Design

Constructed from precision-machined brass with gold plating, this connector provides long-term resilience and corrosion resistance. The crimp termination offers a secure, vibration-resistant installation, while the PTFE insulation ensures consistent dielectric strength for stable operation in various environments.

Applications Across Industries

Ideal for RF equipment, laboratory setups, antenna cabling, and instrumentation, this connector supports installations in both commercial and industrial contexts. Its easy-to-use threaded coupling and compact size make it suitable for new setups and replacement projects alike.

FAQs of Sma Male Crimp For Rg174,Rg316:

Q: How do I install the SMA Male Crimp Connector on RG174 or RG316 cables?

A: To install, first strip the cable per specification, insert the crimp sleeve and cable into the connector, then crimp the contact and ferrule securely using the appropriate crimp tool.

Q: What benefits does gold plating on contacts provide?

A: Gold plating ensures superior conductivity, minimizes contact resistance (3 m), and provides exceptional corrosion resistance, which guarantees reliable long-term signal integrity.

Q: Where can the SMA Male Crimp Connector be used?

A: This connector is suitable for RF equipment, WLAN systems, antenna cabling, laboratory instrumentation, and test equipment, ensuring versatile use across commercial and industrial environments.

Q: What is the operating temperature range of this connector?

A: The connector operates reliably between -65C and +165C, supporting both indoor and outdoor applications in diverse climatic conditions.

Q: When should I choose a crimp-type SMA connector over a solder type?

A: Choose a crimp-type for faster installation, consistent terminations, and easier repeatability, especially when high production efficiency and field replacement are required.

Q: What is the process for ordering connectors in custom lengths or packaging?

A: You can specify custom lengths and preferred packaging (polybag or box) when placing your order with the supplier, manufacturer, or distributor to match your project requirements.

Q: What are the key advantages of using this SMA Male Crimp Connector?

A: Key advantages include high frequency support (up to 6 GHz), low VSWR, robust mechanical strength, reliable crimp connection, and compliance with RoHS, making it ideal for precision RF applications.

Tell us about your requirement
