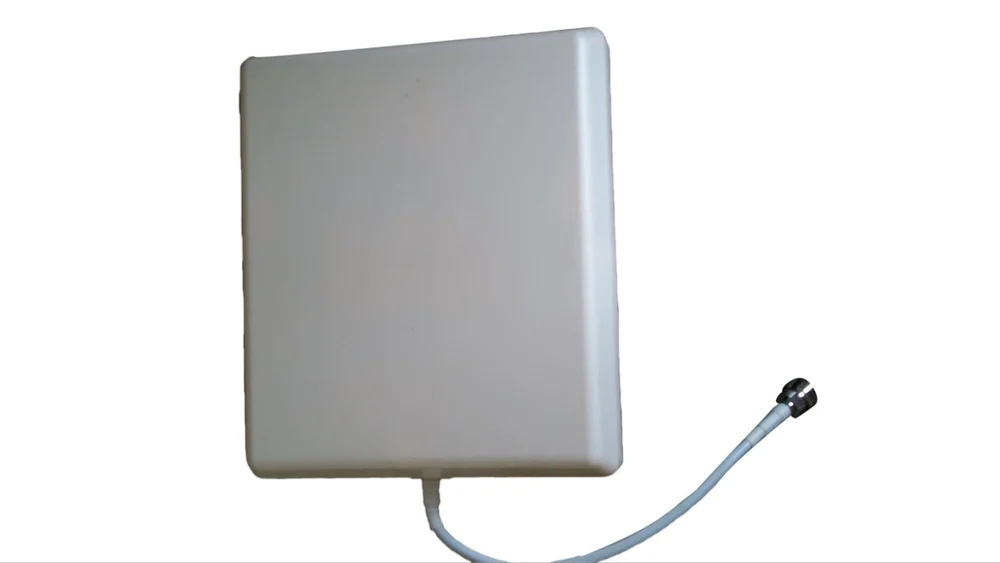

Patch Panel Antenna

Patch Panel Antenna Specification

Components
Antenna body, mounting hardware

Interface
N-Type Female connector

Power Supply
Passive

Power Source
Passive

IP Rating
IP55

Output
RF Signal

Features
High gain, weatherproof, easy installation, UV resistant

Usage
Enhances connectivity for Wi-Fi and wireless devices

Operating Temperature
-40C to +65C

Input
Coaxial (N-Type Female)

Product Type
Patch Panel Antenna

Application
Wireless networking, Wi-Fi, point-to-point connectivity

Rated Voltage
50V DC

Supply Voltage
50V DC

Size
230mm x 230mm

Dimension (L*W*H)
230mm x 230mm x 30mm

Function
Directional wireless signals transmission/reception

Color
White

Weight
490g approx.

Thickness
30mm

Capacity
Supports up to 11 dBi gain

Frequency
2.4 GHz to 2.5 GHz

About Patch Panel Antenna

In line with clients diverse requirements, we are involved in providing an optimum quality products.The provided product is carried out under the supervision of our experts.This product is made as per the requirements of our valuable clients within the scheduled time-frame.The offered product is highly acknowledged by our clients owing to its high reliability and cost effectiveness features.Further, the provided product is also made as per the clientsspecific needs with respect to their budgetary constraints

High Performance and Durable Construction

Crafted for lasting performance, this antenna operates efficiently between -40C and +65C and is rated IP55 for reliable weatherproofing. The combination of ABS and aluminum materials ensures long-term stability and UV resistance. A gain of 11 dBi, front-to-back ratio of 16 dB, and VSWR 1.5 contribute to improved signal quality and minimal interference, making it perfect for demanding wireless networking applications.

Easy Installation and Versatile Applications

Designed for hassle-free setup, the antenna includes mounting hardware for wall or bracket mounting. Its slim profile (30mm thickness) and moderate weight (approx. 490g) simplify handling and positioning. Commonly used by dealers, importers, distributors, and IT professionals in India, it suits Wi-Fi networks, point-to-point wireless links, and diverse commercial deployments requiring reliable signal amplification.

FAQs of Patch Panel Antenna:

Q: How does the patch panel antenna improve wireless signal connectivity?

A: The antenna channels wireless signals directionally with an 11 dBi gain and a wide 60 beamwidth, resulting in enhanced connectivity for Wi-Fi and wireless devices. It minimizes interference and extends the communication range for point-to-point and local area networks.

Q: What are the main benefits of using this antenna for networking?

A: Key advantages include improved signal quality, extended coverage, and reliable performance in harsh weather (IP55 rated). Its high gain and optimal polarization facilitate robust wireless links, whether for home, business, or outdoor installations.

Q: When should I choose this patch panel antenna for my project?

A: This antenna is ideal when you require a focused, directional wireless signal over 2.42.5 GHz frequencies, especially for linking specific points or reinforcing network strength in challenging environments.

Q: Where can the antenna be mounted, and what mounting options are included?

A: You can mount the antenna on a wall or bracket, with all necessary hardware included. Its compact size (230mm x 230mm x 30mm) makes it suitable for both indoor and outdoor placement, depending on your network layout.

Q: What is the installation process for this antenna?

A: Installation is straightforward: secure the mounting hardware to your chosen surface (wall or bracket), attach the antenna, and connect your coaxial cable to the N-Female connector. No external power supply is required, as it operates passively.

Q: How does the antenna handle extreme weather or environmental conditions?

A: Constructed from UV-resistant ABS and aluminum with IP55 rating, the antenna withstands temperatures from -40C to +65C and wind speeds up to 150 km/h, ensuring stable operation in diverse climates.
