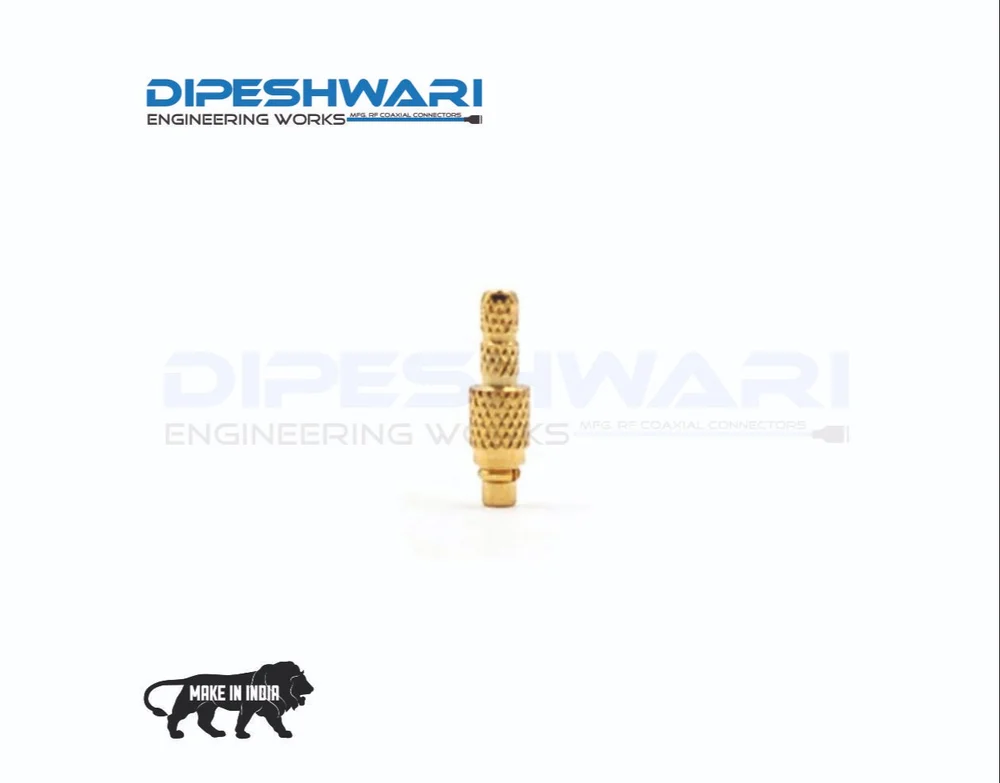

MMCX MALE STRIGHT CRIMP FOR RG316/RG178

MMCX MALE STRIGHT CRIMP FOR RG316/RG178 Specification

Dielectiric Strength
1000V RMS

Rated Temperature
-40C to +85C

Conductor Type
Solid/Stranded

Locking Type
Snap-on

Core Number
1

Operating Temperature
-40C to +85C

Weight
Approx. 2g

Cable Type
RG316, RG178

Diameter
approx. 2.5mm

Usage & Applications
Coaxial RF connection, telecommunication equipment, test devices

Number of Conductor
Single core

Install Type
Crimp

Insulation
PTFE

Core Material
Copper

Features
Compact design, easy installation, and secure connection

Impedance
50 Ohms

Tensile Strength
Standard per RF connector specification

Conductor Shape
Straight

Product Type
MMCX Male Straight Crimp Connector

Length
Standard per design or as required

Voltage
Maximum 335V

Insulation Material
PTFE

Application
RF signal transmission, Telecommunications, Antenna connection

Conductor Material
Copper

Jacket Material
PVC or LSZH (as required)

Storage Temperature
-40C to +85C

Connector Color
Gold plated

Shield Material
Copper alloy

Jacket Color
Black

Dimension (L*W*H)
12mm x 6mm x 6mm (approximate)

Material
Brass (body), gold plated

Color
Gold

Size
Miniature

About MMCX MALE STRIGHT CRIMP FOR RG316/RG178

The MMCX connector is a miniature RF connector commonly used in telecommunications and electronics. Its designed for applications requiring high-frequency transmission, typically in the range of 6 GHz. "MMCX" stands for "Micro Miniature Coaxial" and it features a snap-on coupling mechanism for easy connection and disconnection. These connectors are compact and lightweight, making them suitable for applications where space is limited. Theyre often found in devices like GPS receivers, Wi-Fi antennas, and cellular devices.

Superior Signal Integrity and Performance

With an impedance of 50 Ohms and a frequency range extending up to 6 GHz, the MMCX Male Straight Crimp connector delivers exceptional signal transmission and low loss in RF circuits. The gold-plated contacts over nickel ensure minimal contact resistance and enhanced conductivity, making it ideal for demanding telecommunications and test equipment.

Durable and Reliable Construction

Manufactured with a brass body, copper alloy shield, and PTFE insulation, this connector exhibits excellent mechanical strength and resistance to corrosion and humidity as per MIL-STD-202 standards. Its compact design (approx. 2.5mm diameter) and snap-on locking provide secure connections even in high-vibration environments.

Flexible Installation for Multiple Cable Types

Designed for RG316 and RG178 coaxial cables, the crimp termination style ensures a fast and easy assembly process. Whether for antenna installation, RF module integration, or test device setups, this connector supports versatile applications with its standard length and black PVC or LSZH jacket.

FAQs of MMCX MALE STRIGHT CRIMP FOR RG316/RG178:

Q: How is the MMCX Male Straight Crimp connector installed on RG316 or RG178 cables?

A: Installation involves crimping the connector onto the prepared end of a RG316 or RG178 cable. The cables outer jacket is stripped, contacts are inserted, and the crimp sleeve is compressed using a suitable crimping tool. The snap-on locking ensures a secure and stable connection.

Q: What applications is this connector suitable for?

A: This connector is ideal for RF signal transmission, telecommunications equipment, antenna connections, and test devices. Its reliability and signal integrity make it a preferred choice in both commercial and industrial settings.

Q: When should the gold-plated MMCX connector be used over other types?

A: Gold-plated MMCX connectors are recommended when optimal conductivity, corrosion resistance, and high mating cycles are required, such as in test labs, communication systems, and environments exposed to humidity.

Q: Where can the MMCX Male Straight Crimp connector be sourced in India?

A: You can obtain this product through authorized dealers, distributors, exporters, manufacturers, suppliers, and wholesalers across India, fulfilling requirements from single pieces to bulk orders.

Q: What is the benefit of the compact design of this connector?

A: Its miniature size (approx. 12mm x 6mm x 6mm) allows easy integration into dense electronic systems while maintaining robust mechanical performance and secure RF connection.

Q: What process ensures a reliable connection and minimal signal loss?

A: Crimp termination combined with snap-on locking guarantees strong physical and electrical contact, resulting in excellent insulation, low VSWR ( 1.3), and reduced contact resistance, thereby minimizing signal loss.

Q: How does the connector perform under extreme conditions?

A: Engineered for reliability, it withstands temperatures from -40C to +85C, resists corrosion and humidity per MIL-STD-202 standards, and offers insulation resistance 500 M, ensuring stable operation in harsh environments.
