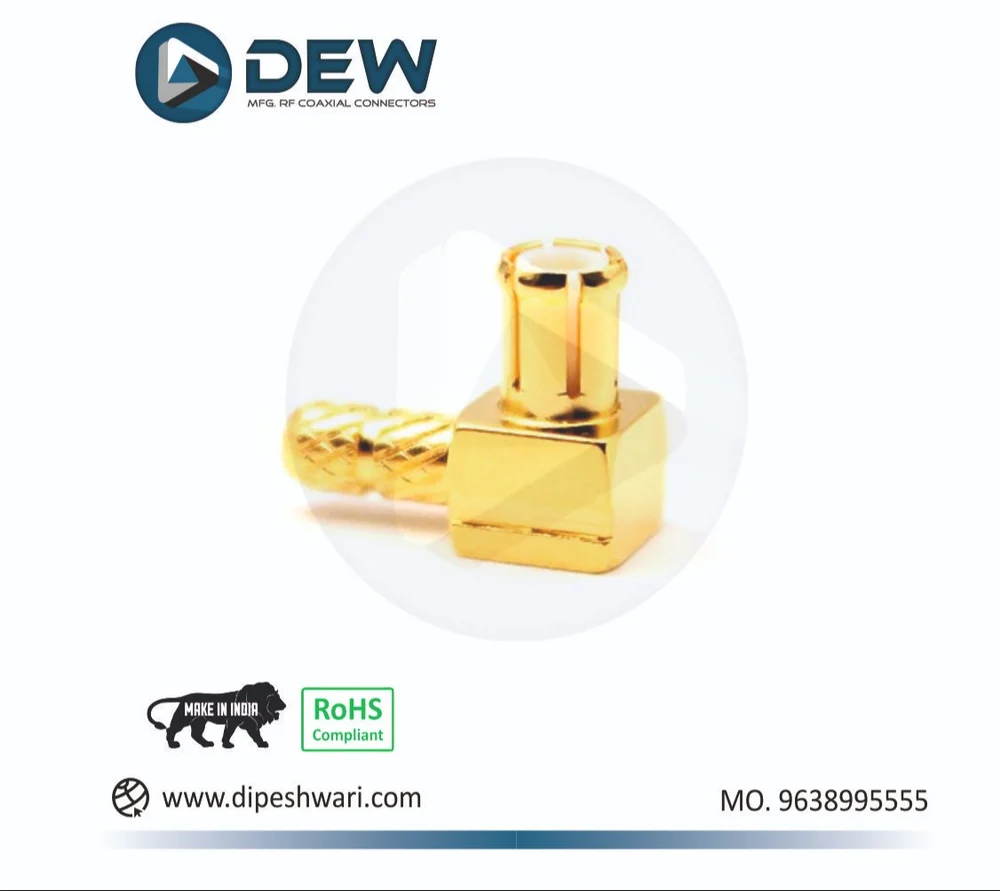

MCX MALE RIGHT ANGLE CRIMP FOR RG316 CABLE

MCX MALE RIGHT ANGLE CRIMP FOR RG316 CABLE Specification

Conductor Shape
Round

Usage & Applications
Wireless, broadcast, telecommunication, antenna instrumentation

Operating Temperature
-65C to +165C

Dielectiric Strength
> 1000 Vrms

Core Number
1

Diameter
Fits RG316 cable (approx. 2.5 mm)

Rated Temperature
-65C to +165C

Weight
Approx. 5 g

Number of Conductor
1

Cable Type
RG316

Conductor Type
Single core

Impedance
50 Ohm

Core Material
Brass

Insulation
PTFE

Install Type
Crimp

Locking Type
Snap-on connection

Tensile Strength
As per cable specification

Features
Right angle, crimp type, compact design, easy installation, reliable connection, suitable for tight-space applications

Product Type
MCX male right angle crimp connector

Length
N/A (connector only)

Voltage
Maximum 335 V RMS

Insulation Material
PTFE

Application
Coaxial cable connection, signal transmission for RF and microwave circuits

Conductor Material
Brass with gold plating

Jacket Material
N/A (connector only)

Storage Temperature
-40C to +85C

Connector Color
Gold

Shield Material
Brass (Nickel or Gold plated)

Jacket Color
N/A (connector only)

Dimension (L*W*H)
Approx. 18 mm x 10 mm x 7 mm

Color
Gold

Material
Brass (body), PTFE (insulator)

Size
Standard for RG316 cable

VSWR
1.30 @ 3 GHz

Contact Plating
Gold plated contacts

Mounting Style
Cable mount

Contact Resistance
Center: 5 mOhm, Outer: 2 mOhm

Frequency Range
DC to 6 GHz

Cable Compatibility
RG316, RG174, RG188, RG179 (with proper crimping dies)

Humidity Range
95% RH

Mating Cycles
500 cycles

About MCX MALE RIGHT ANGLE CRIMP FOR RG316 CABLE

The MCX connector is a miniature RF connector known for its compact size and snap-on coupling mechanism. Its commonly used in applications where space is limited, such as mobile devices, GPS receivers, and small electronics. The MCX connector offers good electrical performance up to several gigahertz and is available in 50 ohms and 75 ohms impedance variants. Its popular for its ease of use and versatility in small-scale RF applications.

Reliable RF Signal Transmission

Engineered to support frequencies up to 6 GHz, this MCX connector offers reliable coaxial cable connections for signal integrity across wireless, broadcast, and telecommunication systems. Its gold-plated brass contacts maintain low resistance for enhanced performance in both commercial and industrial environments.

Designed for Tight Spaces and Easy Installation

The right-angle, compact design of the MCX Male connector allows seamless integration in space-constrained setups. The crimp-type installation streamlines mounting to RG316 and compatible cables, ensuring a robust, vibration-resistant fit that can withstand over 500 mating cycles.

Durable Materials for Long-Term Performance

With a brass exterior and PTFE insulation, this connector is built to handle extreme operating temperatures from -65C to +165C and humidity up to 95% RH. The gold-plated surfaces prevent corrosion, making it suitable for indoor and outdoor applications requiring long-term reliability.

FAQs of MCX MALE RIGHT ANGLE CRIMP FOR RG316 CABLE:

Q: How is the MCX Male Right Angle Crimp connector installed onto an RG316 cable?

A: The connector uses a crimp installation process. After preparing the RG316 (or compatible) cable, the connector is fitted and crimped using appropriate dies, ensuring a secure mechanical and electrical connection.

Q: What benefits does the gold plating offer for contact and shield materials?

A: Gold plating provides excellent corrosion resistance and low contact resistance (center 5 mOhm, outer 2 mOhm), leading to stable signal transmission and extended connector lifespan in demanding environments.

Q: When should I choose a right angle connector over a straight one?

A: Right angle connectors are preferred when space is limited and cable routing needs to be perpendicular to mating surfaces, such as inside compact enclosures or close-quarter installations.

Q: Where can this connector be used?

A: It is suitable for wireless, broadcast, telecommunication, antenna instrumentation, and microwave circuit applications, making it ideal for both professional and industrial setups.

Q: What types of cables are compatible with this MCX connector?

A: This connector fits RG316 cable as standard and is also compatible with RG174, RG188, and RG179 cables, provided proper crimping dies are used during installation.

Q: How does the snap-on locking type contribute to the installation process?

A: Snap-on locking provides quick and secure mating and un-mating, allowing fast assembly and reliable retention, especially valuable in time-sensitive or high-volume applications.

Q: Can the connector withstand harsh environmental conditions?

A: Yes, the brass and PTFE build, combined with rated storage and operating temperatures (-65C to +165C), humidity up to 95%, and high dielectric strength, ensure consistent performance in challenging environments.
