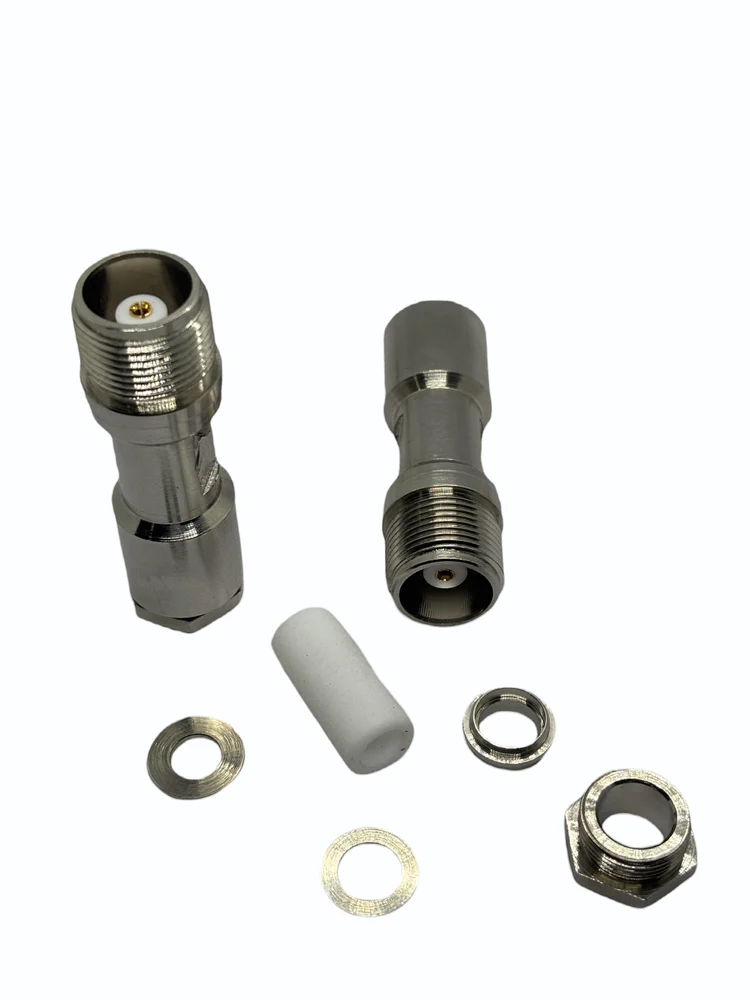

HN Straight Female Clamp For Rg393 Cable

HN Straight Female Clamp For Rg393 Cable Specification

Connector
HN Straight Female Clamp

Voltage Rating
2,500 Volts RMS

Application
RF application, Coaxial Cable Termination

Female End Type
Clamp Type

Material
Brass, Nickel Plated

Temperature
Operating -55C to +155C

Connector Type
Straight Female

Outer Diameter
10.3 mm (suitable for RG393 cable)

Cable Type
RG393 Coaxial Cable

Color
Silver

Flame Resistance Level
High

Sheild
Yes

Insulation
Teflon/PTFE Recommended

Mounting Type
Cable Mount

RoHS Compliant
Yes

Contact Material
Phosphor Bronze, Silver Plated

Coupling Mechanism
Threaded

Standards
MIL-C-39012 compliant

Impedance
50 Ohms

Waterproof Grade
IP67

Frequency Range
DC to 4 GHz

Durability
500 mating cycles

VSWR
1.15 max

About HN Straight Female Clamp For Rg393 Cable

TheHN connectoris a robust, threaded coaxial RF connector with a 50-ohm impedance, used for high-power and high-frequency applications. Its commonly found in telecommunications, broadcasting, and RF test systems, providing secure and durable connections for demanding environments.

Reliable Performance for RF Applications

Designed specifically for RG393 coaxial cables, the HN Straight Female Clamp connector provides outstanding signal integrity and stability across the DC to 4 GHz frequency range. Its threaded coupling mechanism ensures a secure and vibration-resistant connection, making it suitable for telecom, broadcast, military, and industrial RF setups.

Durability and Safety Assured

This connector withstands at least 500 mating cycles, with a waterproof grade of IP67 and a high flame resistance level. Its insulation uses premium Teflon/PTFE, while the silver-plated phosphor bronze contacts and nickel-plated brass body promise lasting performance even under challenging conditions.

FAQs of HN Straight Female Clamp For Rg393 Cable:

Q: How is the HN Straight Female Clamp for RG393 cable installed?

A: The connector uses a clamp-type mechanism for cable mounting, allowing secure termination on RG393 coaxial cables. Precise assembly with appropriate tools is recommended to ensure water resistance and optimal performance.

Q: What applications benefit from using this connector?

A: This connector is ideal for RF applications such as coaxial cable terminations in telecom networks, military equipment, industrial systems, and broadcast setups requiring reliable, waterproof, and flame-resistant connections.

Q: Where can the HN Straight Female Clamp connector be used?

A: It is suitable for environments in India and worldwide where robust coaxial cable connections are needed, especially settings requiring compliance with MIL-C-39012 standards and RoHS directives.

Q: What process is involved in ensuring waterproof performance?

A: Proper tightening of the threaded coupling and correct installation of the clamp and insulation materials (Teflon/PTFE) guarantee an IP67 waterproof seal, protecting against moisture and dust ingress.

Q: How does the connector benefit RF systems?

A: The low VSWR (1.15), high voltage rating (2,500V RMS), and stable frequency operation (up to 4GHz) ensure minimal signal loss, high reliability, and safety in high-performance RF setups.

Q: What is the recommended insulation for this connector?

A: For optimal electrical isolation and flame resistance, Teflon/PTFE insulation is recommended, ensuring safety and longevity under extreme temperatures (-55C to +155C).
