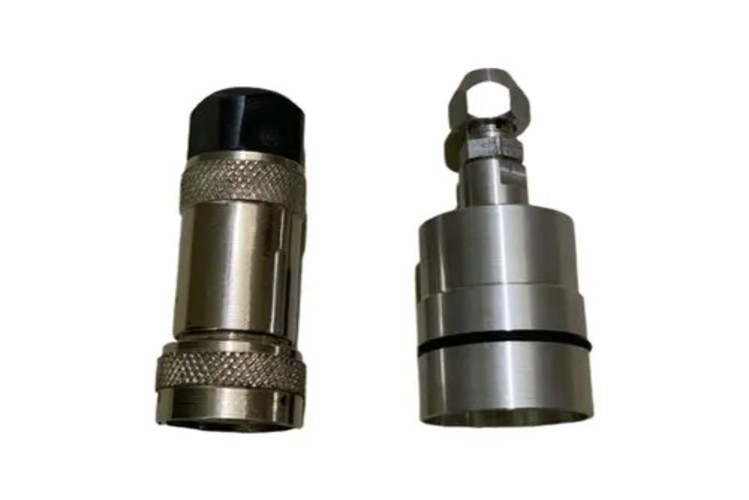

Multi Pin Connectors

Multi Pin Connectors Specification

Operating Temperature
-40C to +110C

Response Time
Instantaneous connection

Components
Connector body, locking system, terminals

Interface
Multi-pin interface

IP Rating
IP65

Usage
Industrial machinery, control panels, instrumentation

Power Supply
AC / DC

Power Source
External electrical supply

Input
Multi-pin input interface

Output
Multi-pin output interface

Features
Robust construction, corrosion resistant, secure locking mechanism

Product Type
Multi Pin Connector

Application
Signal and power transmission

Rated Voltage
250V

Supply Voltage
Up to 250V

Size
Standard

Dimension (L*W*H)
69 mm x 36 mm x 34 mm

Function
Electrical connection and disconnection of multiple circuits

Color
Black

Weight
120g

Capacity
Varies by number of pins

Thickness
Standard

Current Rating
16A per contact

Frequency
50/60 Hz

Number of Pins
6, 12, or custom as per requirement

Mechanical Life
500 mating cycles minimum

Flammability Rating
UL94-V0

Insulation Resistance
1000 M @ 500V DC

Contact Resistance
5 m

Voltage Withstanding (Dielectric Strength)
1500V AC

Insulation Material
High-grade engineered thermoplastic

Environmental Compliance
RoHS compliant

Mounting Type
Panel Mount / Cable Mount

Contact Material
Copper alloy with tin/nickel plating

About Multi Pin Connectors

Experience kingly performance and stellar reliability with our Multi Pin Connectorsengineered for industrial excellence in India. Crafted from superior copper alloy with tin/nickel plating and insulated by top-notch thermoplastic, these connectors ensure robust electrical connectivity and safe multi-circuit operations. Highly recommended for advance purchase, they feature exclusive IP65-rated protection, secure panel/cable mounting, and accommodate 6, 12, or custom pins. With a dielectric strength of 1500V AC, minimal contact resistance, and UL94-V0 flammability rating, theyre a top choice for critical applications in signal and power transmission.

Exclusive Applications Across All Surfaces

Multi Pin Connectors are designed for diverse industrial environments, providing a reliable interface between equipment or systems requiring rapid signal and power transmission. Their robust build makes them applicable to control panels, instrumentation setups, and industrial machinery. These connectors excel in both specific and general-purpose use, offering secure panel or cable mounting options. Thanks to their standardized dimensions and adaptability, implementation at various sites is straightforward, ensuring seamless integration in demanding operational settings.

Main Domestic Market, Certifications, and Transport Terms

Our Multi Pin Connectors are delivered across India, supported by reliable transport services to guarantee prompt arrival at your site. We offer the lowest price while ensuring products meet stringent certifications like RoHS and UL94-V0 flammability. Multiple payment terms are available for your convenience, catering to manufacturers, suppliers, and other stakeholders. Built to rigorous standards, these connectors are trusted by fabricators, exporters, importers, and distributors throughout the domestic market.

FAQs of Multi Pin Connectors:

Q: How do I choose the right pin configuration for my Multi Pin Connector?

A: Select the number of pins6, 12, or custombased on your circuits requirements and application, ensuring optimal signal and power transmission.

Q: What is the process for installing these connectors in industrial applications?

A: Installation involves panel or cable mounting with a robust locking mechanism, providing instantaneous, secure connection and disconnection of multiple circuits.

Q: Where can these Multi Pin Connectors be used most effectively?

A: They are best applied in industrial machinery, control panels, and instrumentation, offering reliable performance in harsh and demanding environments.

Q: What benefits do these connectors offer over standard connectors?

A: With kingly reliability, IP65 rating, high dielectric strength, and corrosion resistance, they deliver top-notch performance, longevity, and safety.

Q: When should these connectors be replaced for maximum efficiency?

A: Thanks to their mechanical life of at least 500 mating cycles, replacement is rarely needed under normal operational loads. Monitor mechanical wear to ensure ongoing efficiency.
