Mini Lemo To Bnc Female Rg174

Mini Lemo To Bnc Female Rg174 Specification

Usage & Applications
Signal transmission, camera link, BNC test equipment, laboratory and field test

Rated Temperature
-20°C to +85°C

Number of Conductor
1

Conductor Shape
Round

Impedance
50 Ohm

Tensile Strength
80 N minimum

Install Type
Plug-and-play

Weight
Approx. 20 grams per cable

Locking Type
Push-Pull locking (LEMO)

Conductor Type
Stranded

Features
High-flexibility, low-loss signal transmission, precision-molded connectors, compact design

Core Number
Single Core

Dielectiric Strength
1.5 kV min

Insulation
PE insulated

Diameter
2.5 mm (typical outer diameter)

Operating Temperature
-20°C to +85°C

Cable Type
Coaxial (RG174)

Core Material
Copper

Product Type

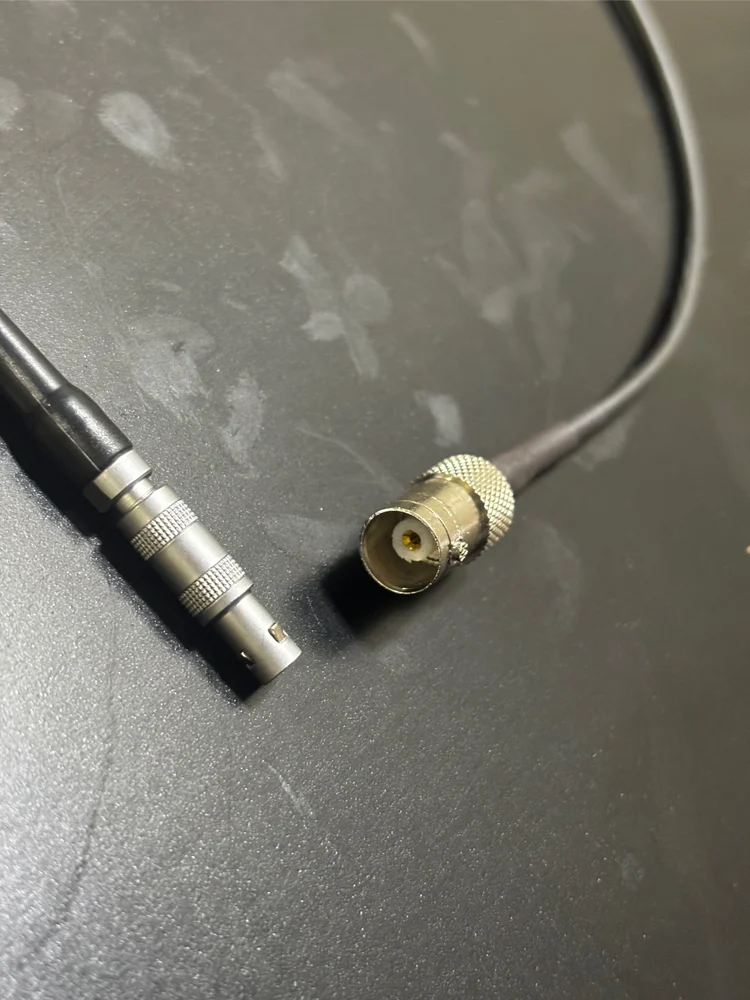

Mini Lemo To BNC Female RG174 Cable

Length
50 cm (customizable length available)

Voltage
30V rated

Insulation Material
PE (Polyethylene)

Application
Broadcasting, Industrial testing, Laboratory instrumentation, CCTV systems, Camera interface

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-40°C to +85°C

Connector Color
Silver/Nickel-plated

Shield Material
Tinned copper braid

Jacket Color
Black

Dimension (L*W*H)
500mm * 6mm * 6mm (Typical)

Material
Copper, PVC, Metal Connectors

Color
Black with silver connectors

Size
RG174 standard

Connector Material
Nickel-plated brass

Frequency Range
DC to 1 GHz

Max Attenuation
0.56 dB/m @ 500 MHz

BNC Connector Gender
Female

Contact Plating
Gold

Cable Standard
RG174/U standard compliant

Return Loss
>= 18dB @ 1GHz

Flame Resistance
UL VW-1

LEMO Type
0B series Mini Lemo

About Mini Lemo To Bnc Female Rg174

AMini LEMO to BNC cableis a specialized cable used to connect devices that have different types of connectorsspecifically, a Mini LEMO connector on one end and a BNC connector on the other. This type of cable is commonly used in applications where high-quality signal transmission is required, such as in broadcast, medical, or industrial environments.

Robust Construction for Professional Applications

Manufactured with nickel-plated brass connectors and PE insulation, this cable delivers durable performance in broadcasting, industrial testing, and camera systems. The stranded copper conductor ensures flexibility, while gold-plated contacts maintain a strong, low-loss signal.

Precision Signal Transmission

Compliant with RG174/U standards, this coaxial cable operates efficiently from DC to 1 GHz, offering a return loss of at least 18dB at 1 GHz and maximum attenuation of just 0.56 dB/m at 500 MHz. Perfect for laboratory and field use where accuracy matters.

Customizable to Suit Your Needs

Available in a standard 50 cm length, the cable can be customized upon request to fit your specific installation. Its compact diameter of 2.5 mm and lightweight build make it suitable for tight spaces and mobile test setups.

FAQs of Mini Lemo To Bnc Female Rg174:

Q: How is the Mini Lemo to BNC Female RG174 cable used in professional environments?

A: This cable is widely used for signal transmission in broadcasting studios, laboratory instrumentation, CCTV systems, and industrial testing setups. Its reliable connectors enable secure connections for test equipment and camera interfaces.

Q: What are the benefits of choosing this cable for laboratory instrumentation or testing?

A: With a high return loss (18dB @ 1GHz) and low attenuation, the cable ensures precise signal transmission crucial in laboratory and field test applications. Its flexibility, compact build, and robust construction make it ideal for dynamic testing environments.

Q: When should I consider customizing the cable length?

A: Custom cable lengths are recommended when you need specific runs for fixed installations, unique bench setups, or to eliminate unnecessary slack that could complicate routing or lab organization.

Q: Where can this cable be deployed most effectively?

A: Beyond laboratories, it excels in broadcasting facilities, industrial testing areas, CCTV infrastructure, and any application requiring robust, low-loss signal connections between equipment.

Q: What is the installation process for this Mini Lemo to BNC cable?

A: Installation is straightforward and plug-and-play. Insert the Lemo connector with its push-pull locking mechanism into corresponding equipment, and attach the BNC female end to compatible devices or cables.

Q: How does the Lemo push-pull locking mechanism benefit users?

A: The push-pull locking feature secures the connection effortlessly, ensuring stable signal transmission even in environments with vibration or frequent equipment movement.

Q: What safety and durability features does this cable provide?

A: The cable is flame-resistant (UL VW-1), rated for -20C to +85C operation, and is constructed with high tensile strength PVC and tinned copper braid shielding, making it suitable for long-term, reliable use in various demanding settings.
